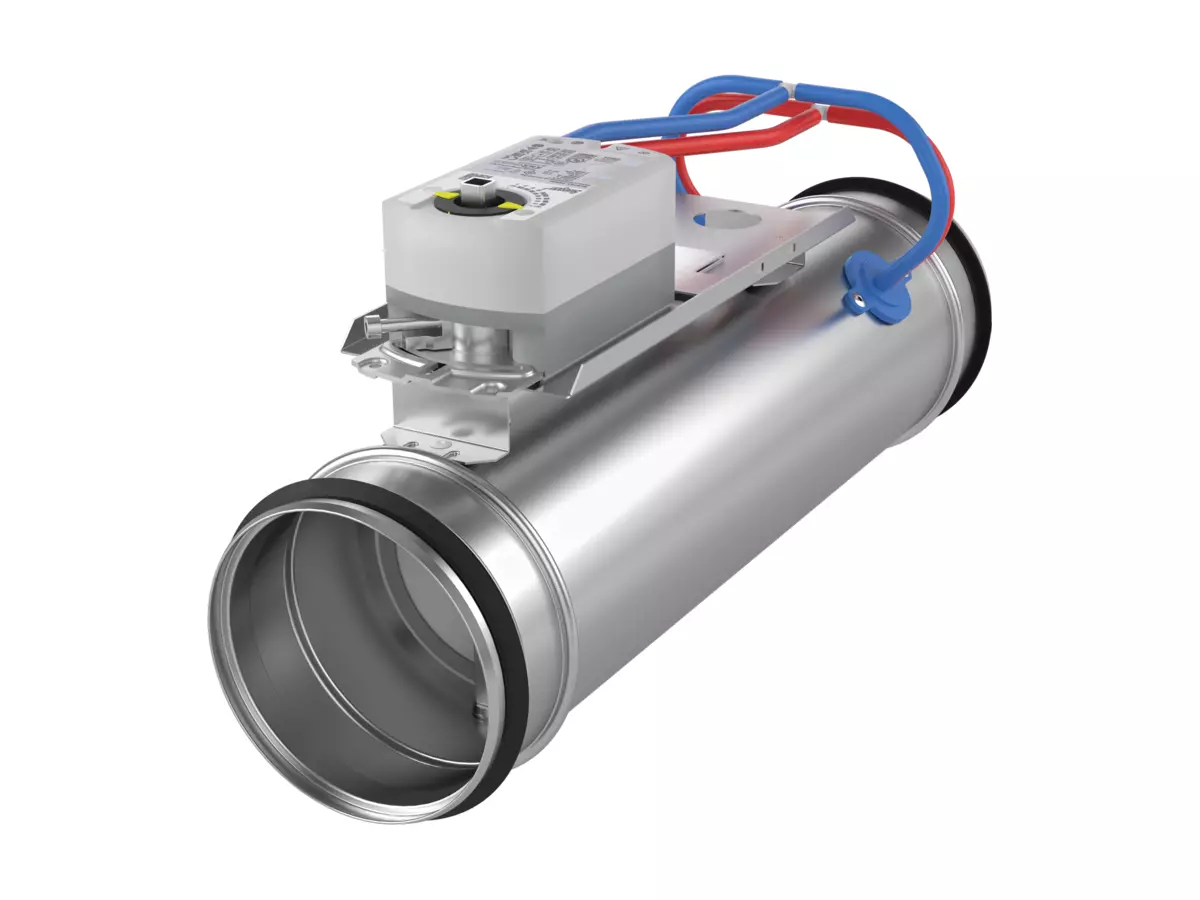

Product view - REACT V with Gruner - Circular
Product view - REACT V with Gruner - Rectangular

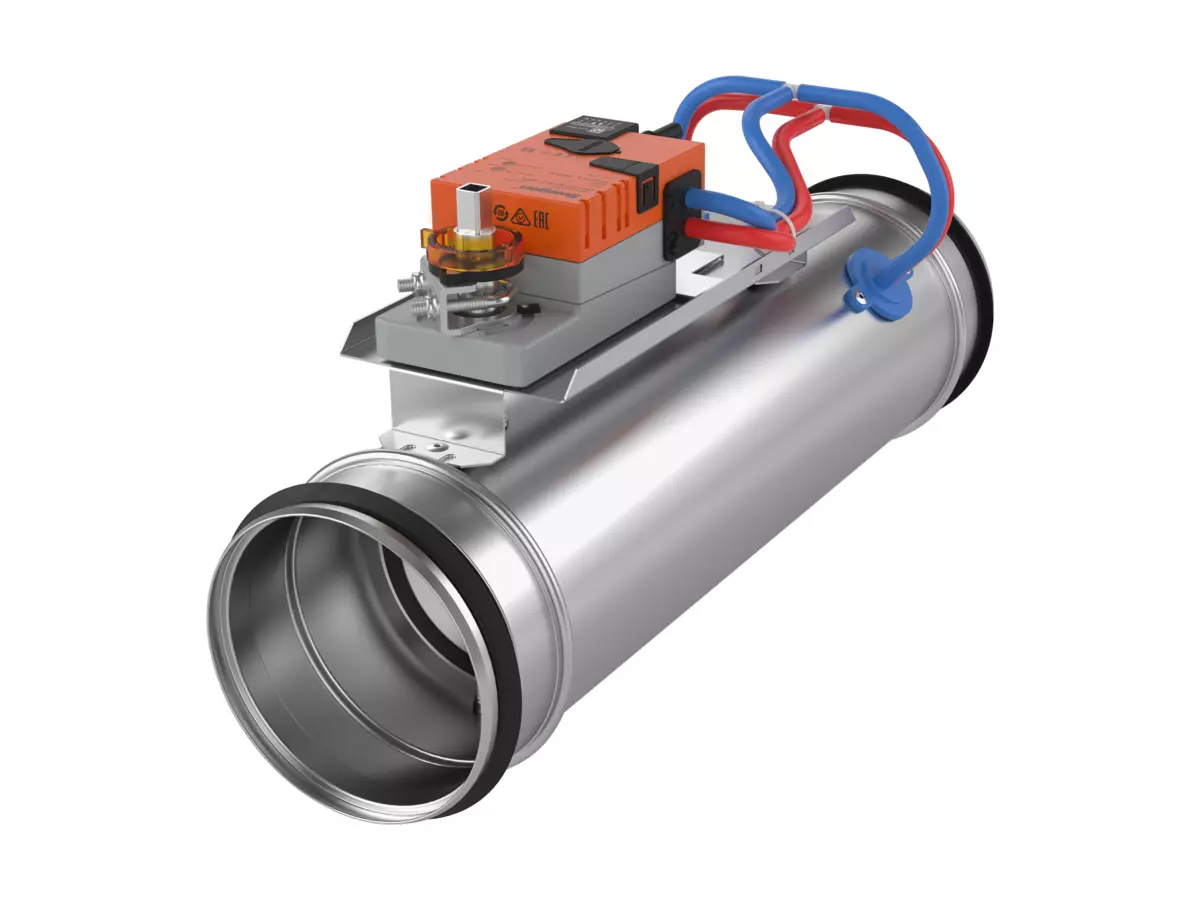

Product view - REACT V with Belimo - Circular
Product view - REACT V with Belimo - Rectangular
Product view - REACT V with Siemens - Circular
Product view - REACT V with Siemens - Rectangular
Product view - REACT V with spring return Gruner - Circular
REACT V
Variable flow damper
- Variable or constant flow regulation
- Can be mounted directly at bends and duct transitions/reductions (circular)
- Possible to choose Gruner, Belimo or Siemens actuator
- Possible to choose different communication protocols
- Can be easily insulated against condensation in the duct system
- Variants:
- REACT V GMB - Modbus and analog control (Gruner)
- REACT V-SR GMB - Modbus and analog control, spring return (Gruner)
- REACT V BMP - Mp-Bus and analog control (Belimo)
- REACT V BMB - Modbus and analog control (Belimo)
- REACT V BBAC - BACnet and analog control (Belimo)
- REACT V SKNX - KNX control (Siemens)
- Circular connections: Ø4-24 in
- Rectangular connections: 8x8-55x28 in
-
Function
- Variable flow regulation
-
Variant
- Circular, Rectangular
- Intended for flow regulation of comfort ventilation.
- Moist, cold and aggressive environments must be avoided.
- Can be installed in both supply and exhaust air systems.
- Pressure independent but recommended working range between minimum pressure drop of 0.04 inWC to 1.2 inWG over the damper.
- The minimum air flow must be considered during design.
- For good regulation, a minimum difference between Vmin and Vmax of 20% of the product’s Vnom is recommended.
