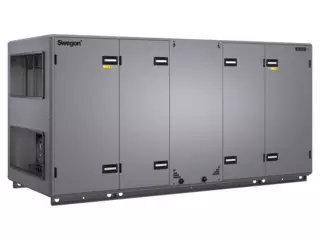

SILVER C PX

Air handling unit with counterflow plate heat exchanger and top, side or L connections, without controls.

Max. air flow 18.112 m³/h (Ecodesign)
Counter flow plate heat exchanger
Cooling/heating available as an accessory (not integrated)
Placement indoors/outdoors
Top, side or L connections
Without controls
Certified by Eurovent
Recycled and renewably produced steel with Magnelis® coating (C5) lowers carbon footprint

Product Description

With a focus on sustainability, we are committed to reducing the embodied carbon of our units. By introducing XCarb® recycled and renewably produced steel with Magnelis® coating (C5) inside our units we have reduced the total GWP by around 10% and a GOLD unit now contains roughly 15% recycled material.

	Dimensions				Air flow
	Width mm	Height mm	Length mm	Weigth kg	Min air flow m³/s (Ecodesign)	Max air flow m³/s (Ecodesign)	Min air flow m³/h (Ecodesign)	Max air flow m³/h (Ecodesign)
SILVER C PX 04	901	1020	2333/2534	349-490	0.08	0.5	290	2012
SILVER C PX 05	901	1020	2333/2534	349-490	0.08	0.5	290	1944
SILVER C PX 07	1071	1185	2503/2811	435-623	0.08	0.8	290	2793
SILVER C PX 08	1071	1185	2503/2811	449-631	0.2	0.8	720	2844
SILVER C PX 11	1275	1395	2925	715-804	0.2	1.1	720	3883
SILVER C PX 12	1275	1395	2925	736-832	0.2	1.1	720	3993
SILVER C PX 14	1476	1651	3351	929-1049	0.2	1.7	720	6495
SILVER C PX 20	1476	1651	3351	949-1089	0.3	1.9	1080	6844
SILVER C PX 25	1746	1911	3825	1235-1427	0.3	2.5	1080	9000
SILVER C PX 30	1746	1911	3825	1287-1451	0.5	2.6	1800	9537
SILVER C PX 35	2136	2259	4477	1792-2038	0.5	3.6	1800	12803
GOLD PX 40	2136	2259	4477	1818-2064	0.75	4.0	2700	14476
GOLD PX 40+	2592	2259	4507	2180-2462	0.75	4.6	2700	16560
GOLD PX 50+	2592	2388	4507	2290-2690	0.75	4.8	2700	17262
GOLD PX 60+	2592	2388	4507	2290-2690	1.0	5.0	3600	18112
SILVER C PX Top 04	901	1185	2534	480-484	0.08	0.5	290	2032
SILVER C PX Top 05	901	1185	2534	480-492	0.08	0.6	290	2032
SILVER C PX Top 07	1071	1395	2811	599-613	0.08	0.7	290	2534
SILVER C PX Top 08	1071	1395	2811	613-621	0.2	0.7	720	2533
SILVER C PX Top 11	1275	1395	3285	814-826	0.2	1.1	720	3793
SILVER C PX Top 12	1275	1395	3285	836-854	0.2	1.1	720	3831
SILVER C PX Top 14	1476	1651	3914	1083-1131	0.2	1.7	720	6534
SILVER C PX Top 20	1476	1651	3914	1103-1175	0.3	1.9	1080	6713
SILVER C PX Top 25	1746	1911	4208	1375-1489	0.3	2.3	1080	8331
SILVER C PX Top 30	1746	1911	4208	1427-1513	0.5	2.3	1800	8315

Eurovent

Nordic Swan listed

The product is listed in the database for building products that can be used in Nordic Swan Ecolabelled buildings.

Filter

Include Accessory documents

Document	Article	Document type	Date
Overview - GOLD/SILVER/COMPACT (pdf 6.64MB)	GOLD/SILVER/COMPACT	Brochure	06/04/2022
Description, AHU (pdf 2.06MB)	SILVER C	Technical catalogue	24/11/2022
Sizing, installation, dimensions, weight (pdf 5.94MB)	SILVER C PX/CX	Technical catalogue	27/09/2023
Operation and maintenance (pdf 6.63MB)	SILVER C	IOM Manual	19/10/2023
Hand-held terminal, fan motor control (SILVER C/MIRUVENT) (pdf 579.55kB)	TBLZ-4-75	IOM Manual	30/04/2021
Recycling instruction for AHUs (pdf 2.93MB)	GOLD/SILVER C/COMPACT	Quality	24/05/2018
Installation instruction (sizes 004-080) (pdf 11.22MB)	SILVER C RX/PX/CX	IOM Manual	25/01/2021
Guide hygiene execution (GOLD/SILVER C) (pdf 1.33MB)	VDI 6022	IOM Manual	27/09/2023
Declaration of hygiene execution (GOLD/SILVER C) (pdf 143.17kB)	VDI 6022	Quality	27/09/2023
Fan Motor (without factory fitted motor control system) (pdf 106.09kB)	SILVER C	IOM Manual	19/10/2023
EC declaration of conformity for the machinery (pdf 139.64kB)	GOLD/SILVER C/COMPACT	Quality	03/03/2020
Quick Guide - AHU (pdf 4.91MB)	GOLD, SILVER C, COMPACT, GLOBAL, ESENSA, CLASS UNIT, CASA, MURAL	Brochure	31/01/2024
