VARICOOL TKM
- Very high heating & cooling capacity
- Advanced sound absorption values (class B)
- Can be used as a closed radiant ceiling or sail
- Easy installation
- Full-surface ceiling activation possible
- Components can be integrated
- Can be combined with CAURUS
Product Description

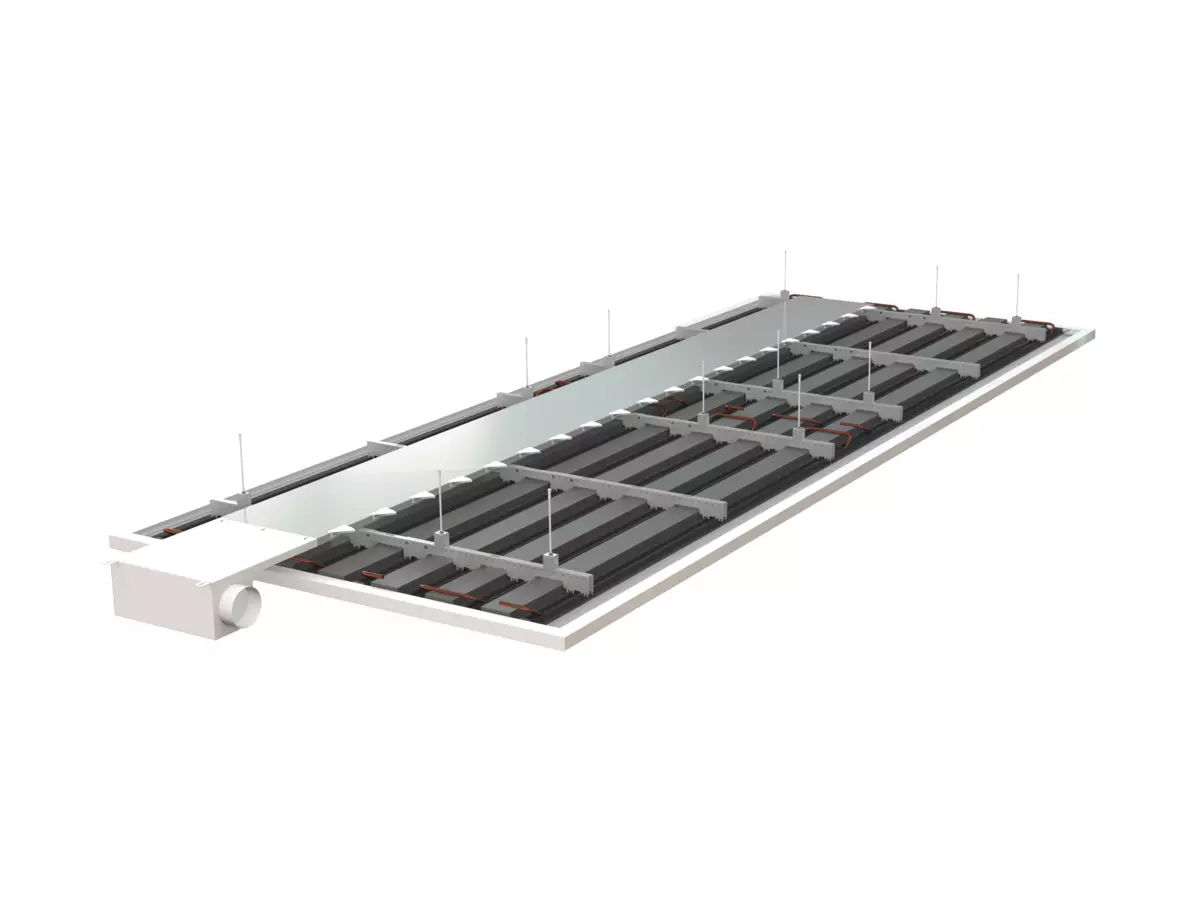

The VARICOOL TKM jointless textile ceiling sail is a waterbased radiant ceiling system. In conjunction with the CAURUS hybrid system, it guarantees an optimum room climate in any environment. This combination has very high heating and cooling capacities, convenient supply air ducting and superior acoustic properties. In addition, the system incorporates the storage mass for dissipating heat loads into the overall room thermal concept using the thermally active building system principle. This further reduces energy requirements and operating costs.
Efficient indoor air circulation with CAURUS
With supply air flow rates of up to 35 m³/hlinear metre per sail, the supply air is introduced horizontally into the room on one side above the textile sail. Specially developed high capacity induction nozzles draw in warm room air on the opposite side of the sail and accelerate it via the supply air channel, thus achieving high energy transfer into the concrete. The energy temporarily stored in this way can be dissipated at night – with free cooling if possible. Due to the highly effective ventilation results, draught-free mixing of the air throughout the room with a homogeneous temperature profile is established within a very short time.*
