SYST MS

Assembly fitting

Available with threaded drop rods and thread locks
Available in different lengths
M8

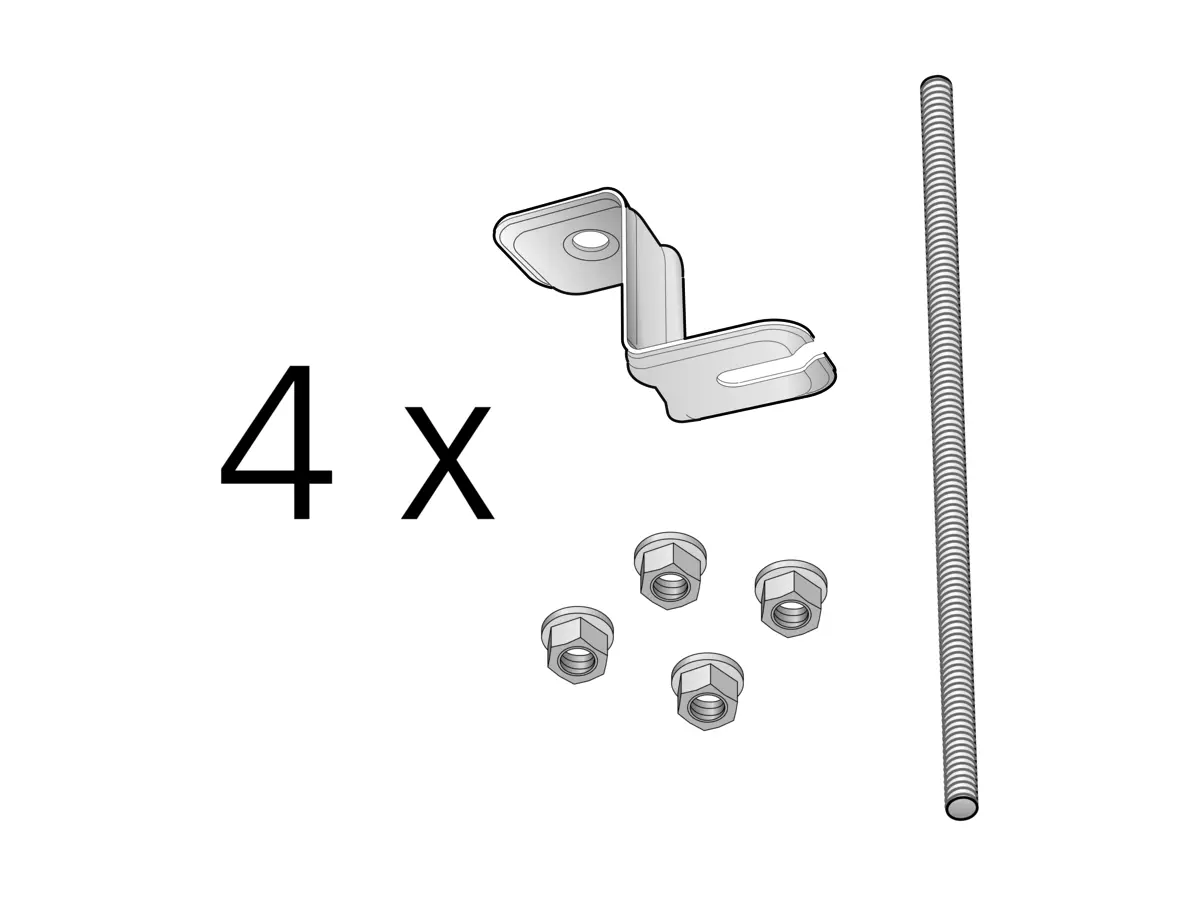

Assembly fitting containing threaded rods, ceiling brackets and nuts to all four mounting brackets.

Technical Description

Material and surface treatment

Installation, commissioning and maintenance

Suspension

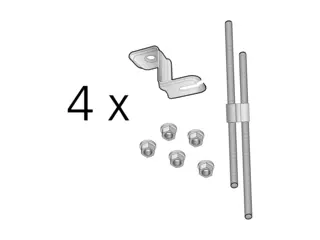

The products has four mounting brackets for suspension and are installed using one threaded drop rod in each mounting bracket. A double threaded rod with a thread lock should be used if there is substantial distance between the overhead slab and the unit. A 200 mm threaded drop rod is used for surface mounting.

Threaded drop rods and assembly fitting SYST MS M8 are ordered separately.

For installation in an existing T-bar system, the product is stabilised by the T-bar system and in this case it is sufficient to suspend the product from two brackets (diagonal).
