ADRIATIC AWC

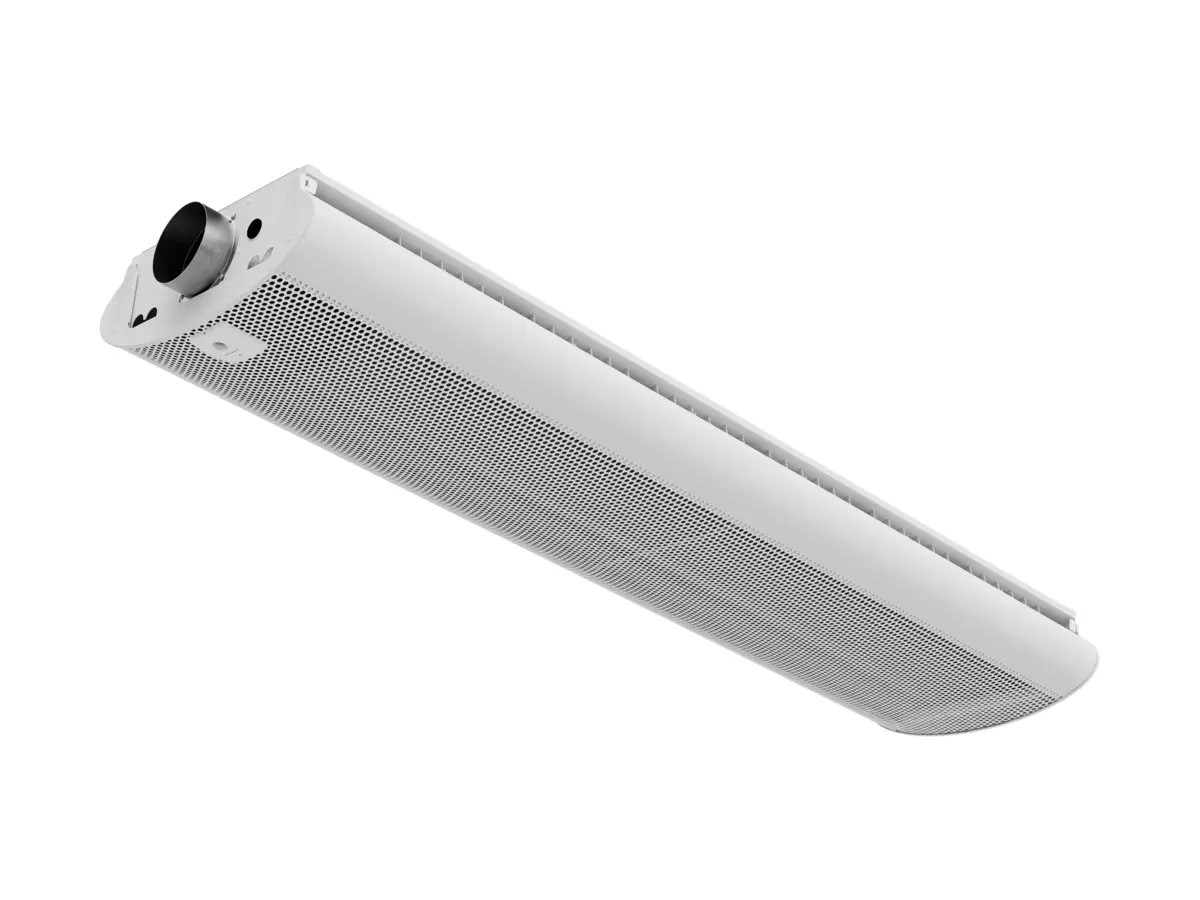

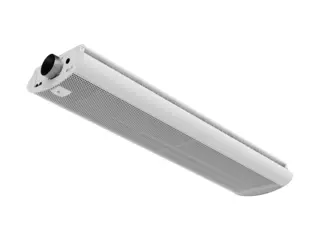

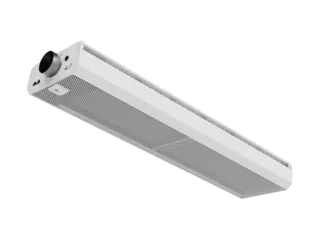

Energy-saving climate beam for demand-controlled ventilation

Climate beam with cooling, heating and ventilation for demand-controlled indoor climate
Equipped with control equipment for stand-alone or connectable to BMS via Modbus
Designed for suspended installation, either hanging or mounted directly against the ceiling
Complete product with integrated damper for variable air flow control 0-100%
Stylish design component in two optional versions
Energy-efficient operation since the room is ventilated, heated and cooled exactly as called for by the load, neither more or less
Highest possible comfort with provision for individual control at a product or room level
Large working range in one and the same product simplifies planning
Available with water and air connections on different short sides
As an optional extra, there is a connection casing for concealing the ventilation duct and water pipes
Service-friendly with folding design component for easy accessibility
Standard colour White RAL 9003
- 5 alternative standard colours
- Other colours upon request

Calculate with your requirements

Technical Description

Design

Material and surface treatment

The casing is made of pre-painted sheet metal. The design plate on the Prisma is pre-painted sheet metal, and for the Ellips it is aluminium and sheet metal. The coil is made of copper and aluminium. The connection casing is made of pre-painted sheet metal.

Standard colour:

RAL 9003 White (Signal white), gloss ratio 30 ± 6%

Alternative standard colours:

RAL 7037 Grey (Dusty gray), gloss ratio 30-40%)
RAL 9010 White (Pure white), gloss ratio 30-40%)
RAL 9005 Black (Jet black), gloss ratio 30-40%)
RAL 9006 Silver (White aluminium), gloss ratio 70-80%)
RAL 9007 Grey (Grey aluminium), gloss ratio 70-80%)
Other colours available on request

Installation, commissioning and maintenance

Variant		Supply air			Performance
Size	Air connection:	Pa*	l/s	m³/h	Total cooling capacity (W)**	Sound level (dB(A))
1.2	125	50	14	50.4	518	<20
1.2	125	50	21	75.6	596	24
1.8	125	50	10	36	539	<20
1.8	125	50	20	72	796	<20
1.8	125	50	31	111.6	934	25
2.4	125	50	14	50.4	788	<20
2.4	125	50	30	108	1101	21
2.4	125	50	44	158.4	1236	28
3	125	50	17	61.2	946	<20
3	125	50	34	122.4	1298	20
3	125	50	52	187.2	1467	30
*Total pressure duct (Pa)
**Air: ΔTair=7K, Water: ΔTmk=8.5K, water flow=0.05 l/s for 1.2 m and 1.8 m, water flow=0.1 l/s for 2.4 m and 3.0 m
***Including -4dB room attenuation

ADRIATIC KA

Connection casing, connection to wall

ADRIATIC KA-G

Connection casing, connection to ceiling

ADRIATIC T MD 4S

Assembly piece

LOCUS

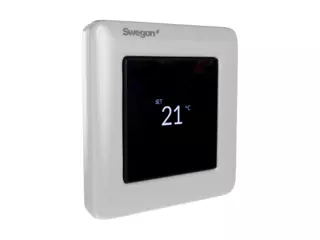

Room unit for waterborne climate systems

SYST MS

Assembly fitting

Filter

Include Accessory documents

Document	Article	Document type
Overview - Waterborne climate systems (pdf 4.63MB)	Water Overview	Brochure
Installation - Commissioning - Maintenance (pdf 7.1MB)	ADRIATIC AWC	IOM Manual
Energy-saving climate beam for demand-controlled ventilation (pdf 9.18MB)	ADRIATIC AWC	Technical catalogue
Declaration of conformity (CE) (pdf 104.1kB)	ADRIATIC AWC	Quality
Modbus settings (pdf 1.05MB)	ADRIATIC AWC, PARASOL Zenith AWC, PARAGON AWC, PARAGON Wall AWC	IOM Manual
