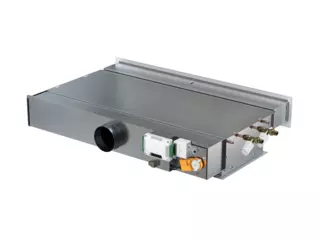

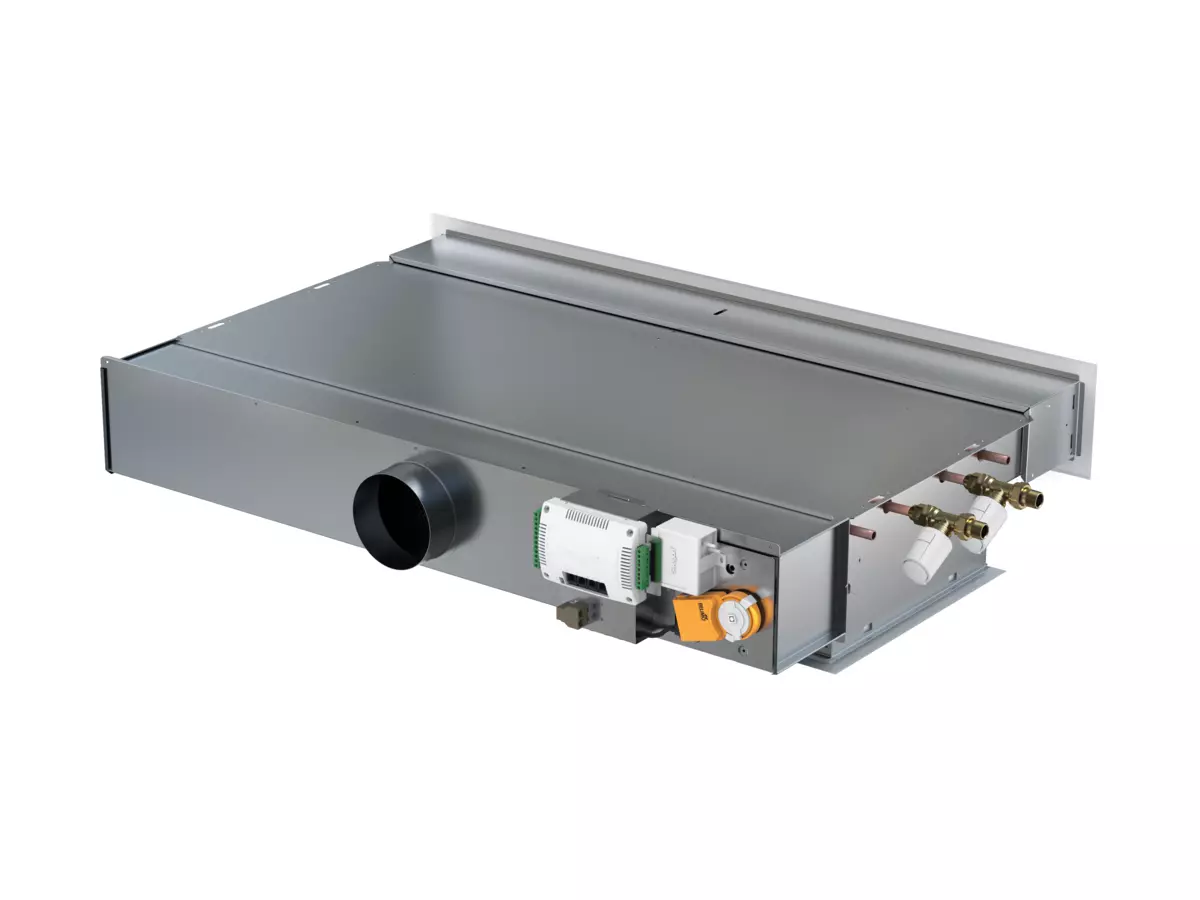

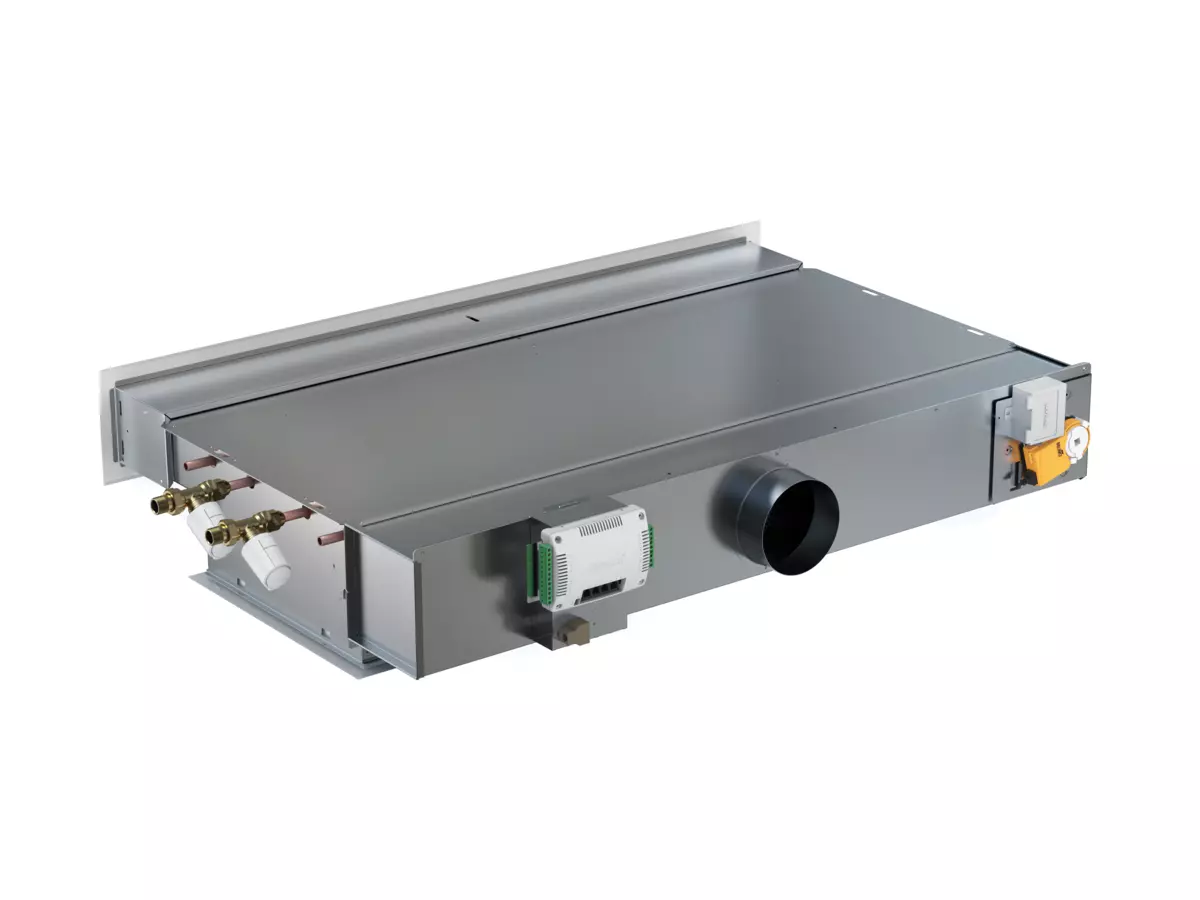

PARAGON AWC
- Comfort module for demand-controlled indoor climate
- Equipped with control equipment for stand-alone or connectable to BMS via ModBUS
- Complete product with integrated damper for variable air flow control 0-100%
- Energy-efficient operation since the room is ventilated, heated and cooled exactly as called for by the load, neither more or less.
- Ventilation, cooling and heating
- Straightforward installation with optional water connection side and centred air connection
- Adjustable air direction ADC and adjustable grille louvres
- Low installation height
- High capacity
Technical Description

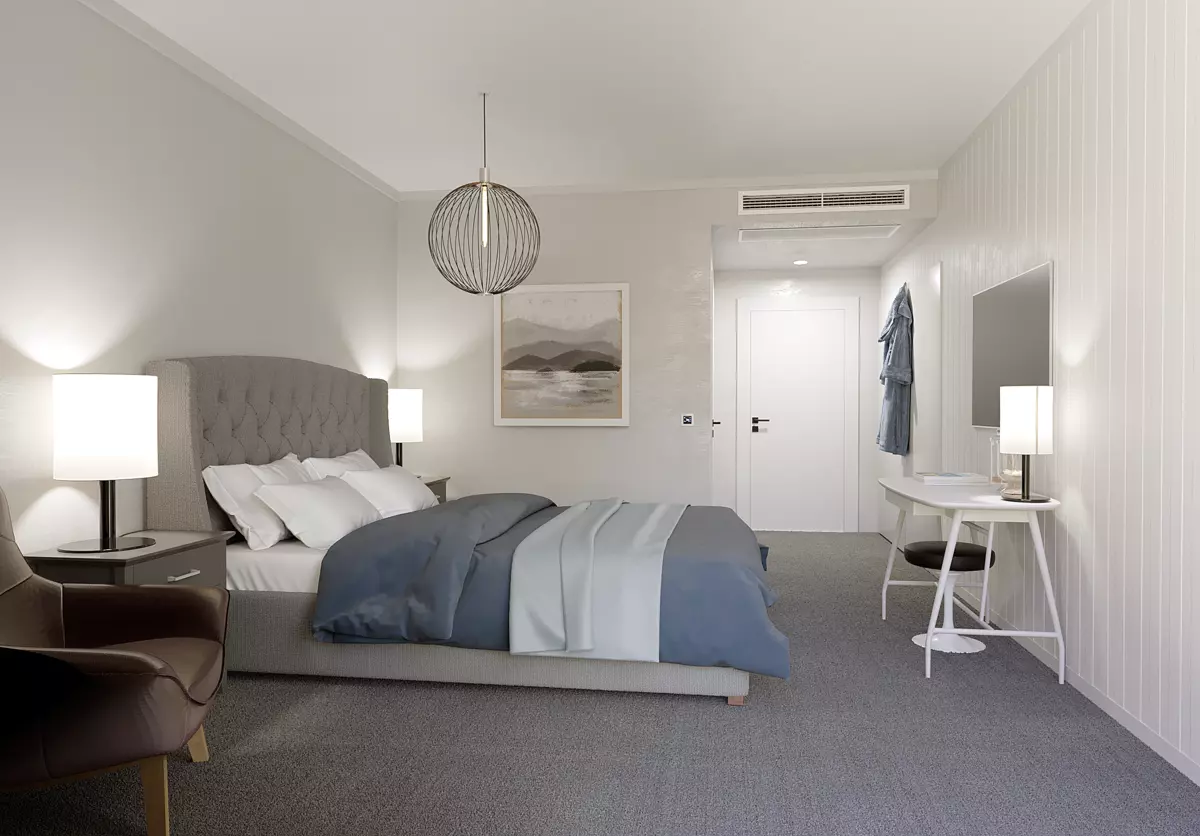

The compact comfort module PARAGON VAV is primarily designed for hotels and hospitals but can also be installed in offices.
The casing is manufactured in galvanized sheet steel (zinc plated) Grill is in prepainted sheet steel RAL 9003, Coil is in copper and aluminium.
Standard colour:
- RAL 9003 White (Signal white), gloss ratio 30 ± 6%
Alternative standard colours:
- RAL 7037 Grey (Dusty gray), gloss ratio 30-40%)
- RAL 9010 White (Pure white), gloss ratio 30-40%)
- RAL 9005 Black (Jet black), gloss ratio 30-40%)
- RAL 9006 Silver (White aluminium), gloss ratio 70-80%)
- RAL 9007 Grey (Grey aluminium), gloss ratio 70-80%)
- Other colours available on request
The PARAGON AWC has two holes on each short side for hanging and is mounted with a threaded rod in each hole. For installation use the assembly fitting containing threaded rods, ceiling brackets and nuts to all four mounting brackets. Threaded rod length from 200 mm.
In the event of large distances between ceiling and unit, double threaded rods with thread locks are used.
Assembly fittings SYST MS M8 are ordered separately.
Air flow range: | Pressure range:Â | Cooling capacity total:Â | Heating capacity: | |
l/s | m³/h | Pa | W | water (W) |
0 - 85 | 0 - 306 | 20 - 200 | Up to 3180 | Up to 5060 |
 | ||||
SIZE | ||||
Length | Depth | Hight | ||
(mm) | (mm) | (mm) | ||
800, 1100, 1400 | 722 (+0-20) | 205 |
