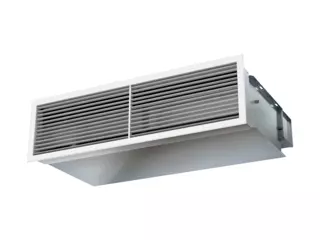

PARAGON Wall AWC
- Comfort module for demand-controlled indoor climate

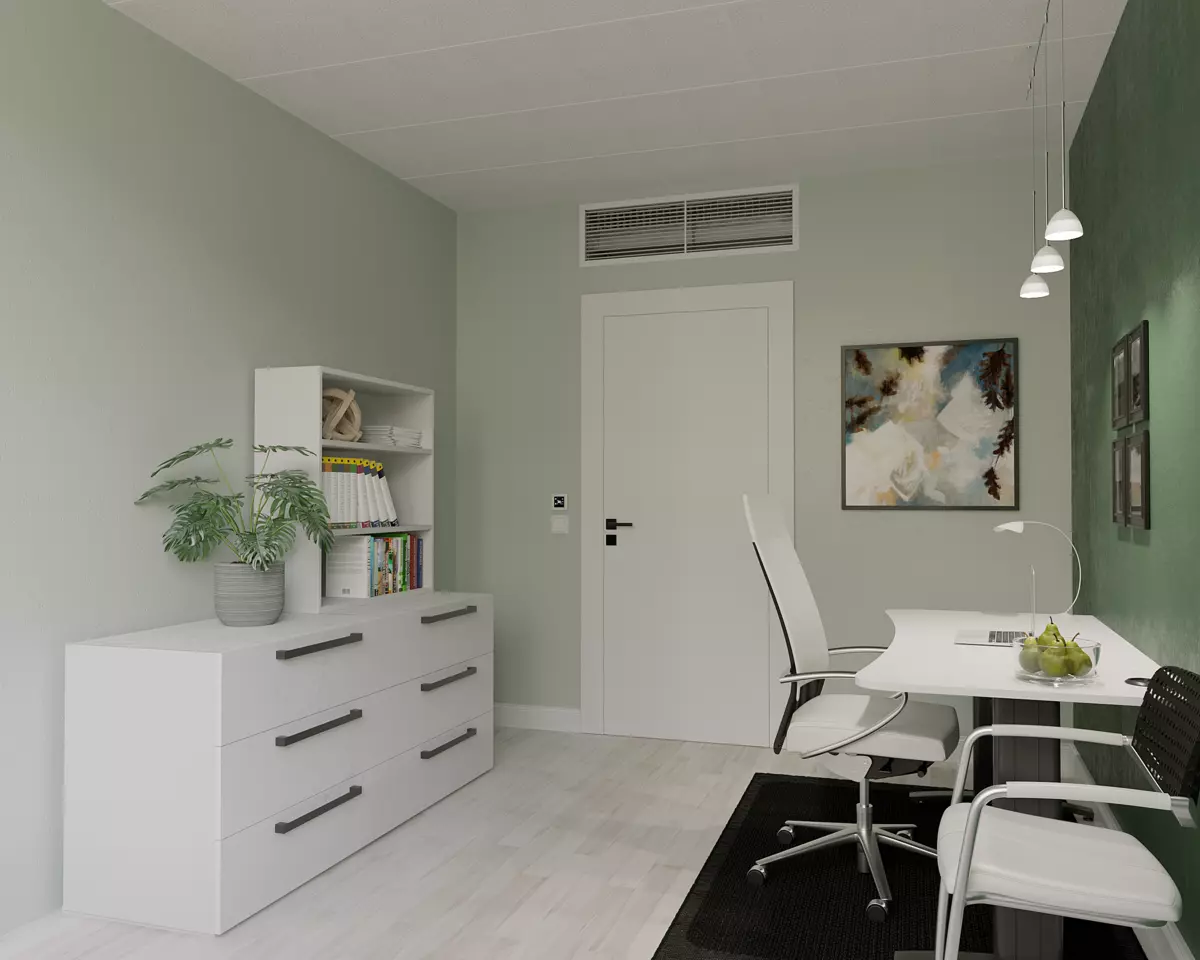

- Designed for installation in the rear edge of the room and ideally is positioned above the adjacent corridor’s suspended ceiling
- Equipped with control equipment for stand-alone or connectable to BMS via Modbus
- Complete product with integrated damper for variable air flow control 0-100%
- Energy-efficient operation since the room is ventilated, heated and cooled exactly as called for by the load, neither more nor less
- Ventilation, cooling and heating
- Straightforward installation with two optional water connection sides and centred air connection
- Adjustable air direction ADC and adjustable grille louvres
- Low installation height
- High capacity
Technical Description

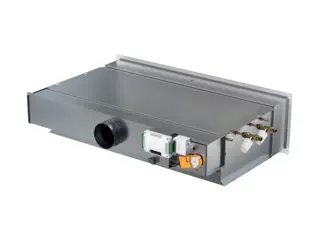

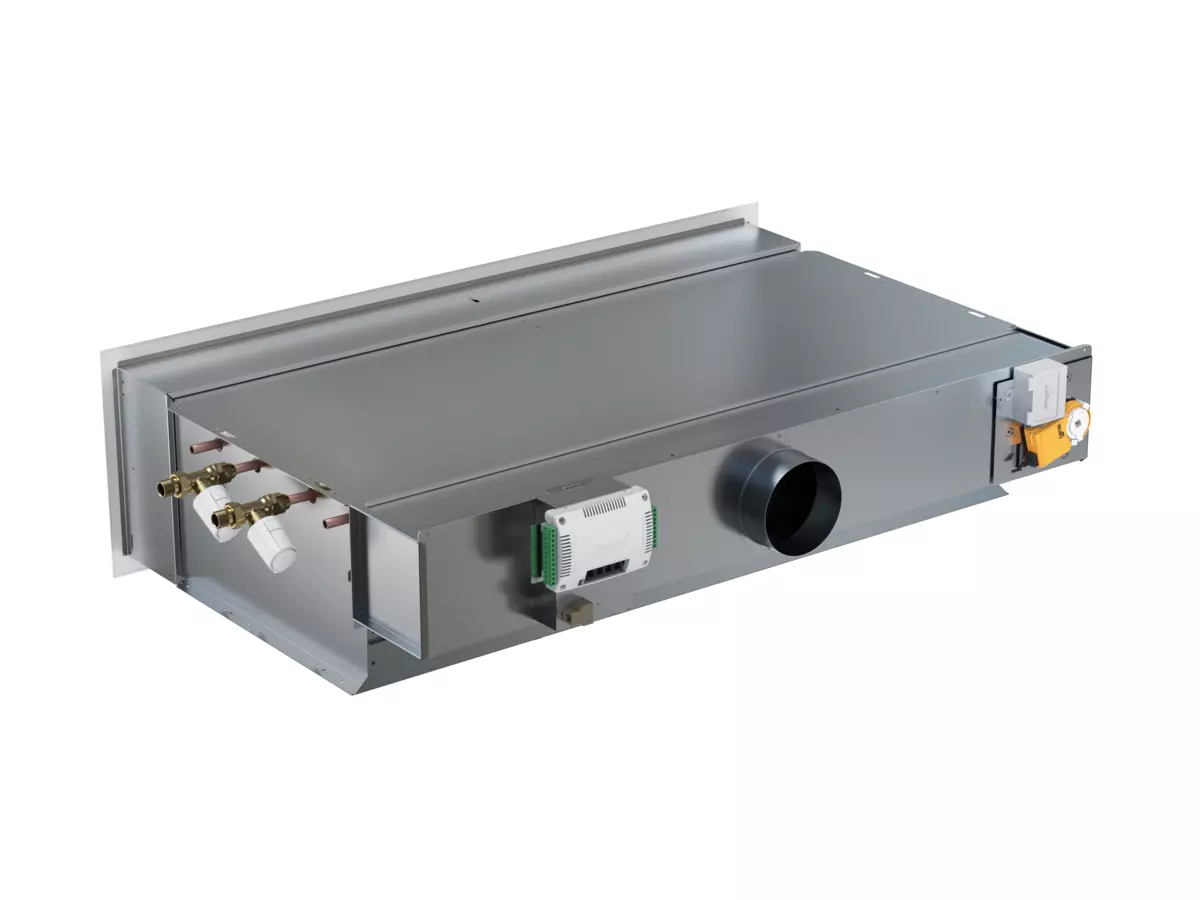

PARAGON Wall AWC is a demand-controlled comfort module with integrated regulation which, with its mounted control equipment, brings air flow and cooling and heating under demand-control for the best energy efficiency and comfort. The product has a unique slot opening that means we can always guarantee the right air flow into the room and this with our functional controller with many I/O possibilities. This is a plug & play product for quick and easy installation. The compact comfort module is primarily designed for offices.
The casing is manufactured in galvanized sheet steel (zinc plated) Grill is in prepainted sheet steel RAL 9003, Coil in copper and aluminium.
Standard colour:
- RAL 9003 White (Signal white), gloss ratio 30 ± 6%
Alternative standard colours:
- RAL 7037 Grey (Dusty gray), gloss ratio 30-40%)
- RAL 9010 White (Pure white), gloss ratio 30-40%)
- RAL 9005 Black (Jet black), gloss ratio 30-40%)
- RAL 9006 Silver (White aluminium), gloss ratio 70-80%)
- RAL 9007 Grey (Grey aluminium), gloss ratio 70-80%)
- Other colours available on request
Air flow range: | Pressure range:Â | Cooling capacity total:Â | Heating capacity: | |
l/s | m³/h | Pa | W | water (W) |
0 - 85 | 0 - 306 | 20 - 200 | Up to 2682 | Up to 4274 |
SIZE | ||||
Length | Depth | Hight | ||
(mm) | (mm) | (mm) | ||
800, 1100, 1400 | 722 (+0-20) | 286 |
