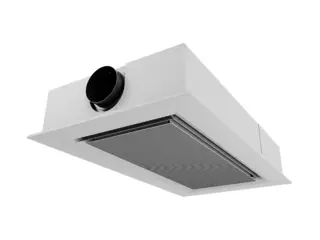

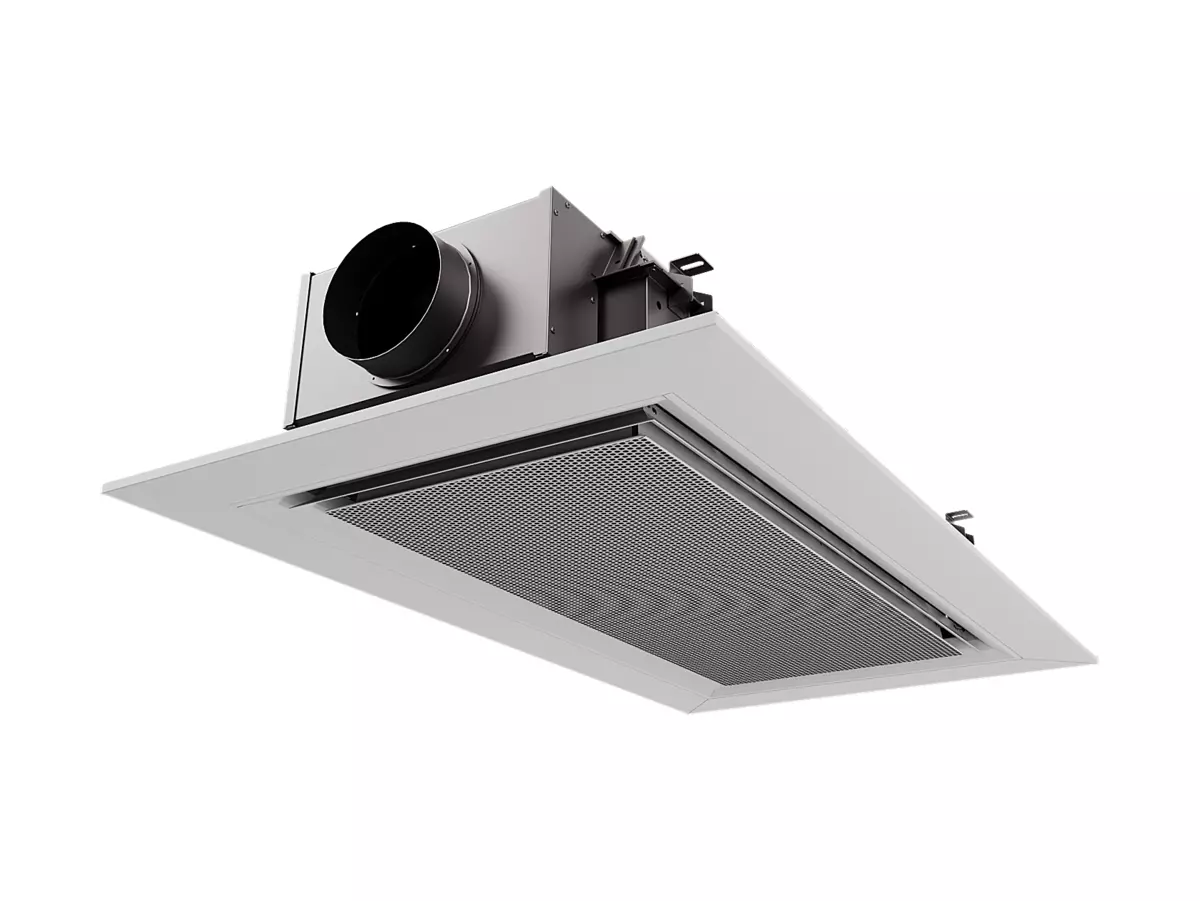

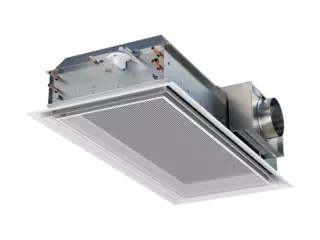

PARASOL Zenith

The casing is manufactured in galvanized sheet steel (zinc plated) The face plate is in prepainted sheet steel and aluminium RAL 9003, Coil in copper and aluminium.

Standard colour:

• RAL 9003 White (Signal white), gloss ratio 30 ± 6%

Alternative standard colours:

• RAL 7037 Grey (Dusty gray), gloss ratio 30-40%)
• RAL 9010 White (Pure white), gloss ratio 30-40%)
• RAL 9005 Black (Jet black), gloss ratio 30-40%)
• RAL 9006 Silver (White aluminium), gloss ratio 70-80%)
• RAL 9007 Grey (Grey aluminium), gloss ratio 70-80%)
• Other colours available on request

Suspension

PARASOL Zenith has four mounting brackets for suspension and are installed using one threaded drop rod in each mounting bracket. A double threaded rod with a thread lock should be used if there is substantial distance between the overhead slab and the unit. A 200 mm threaded drop rod is used for surface mounting. Threaded drop rods and assembly fitting SYST MS M8 are ordered separately.

For installation in an existing T-bar system, the product is stabilised by the T-bar system and in this case it is sufficient to suspend the product from two brackets (diagonal).

Accessories for suspended mounting

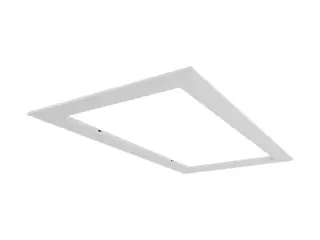

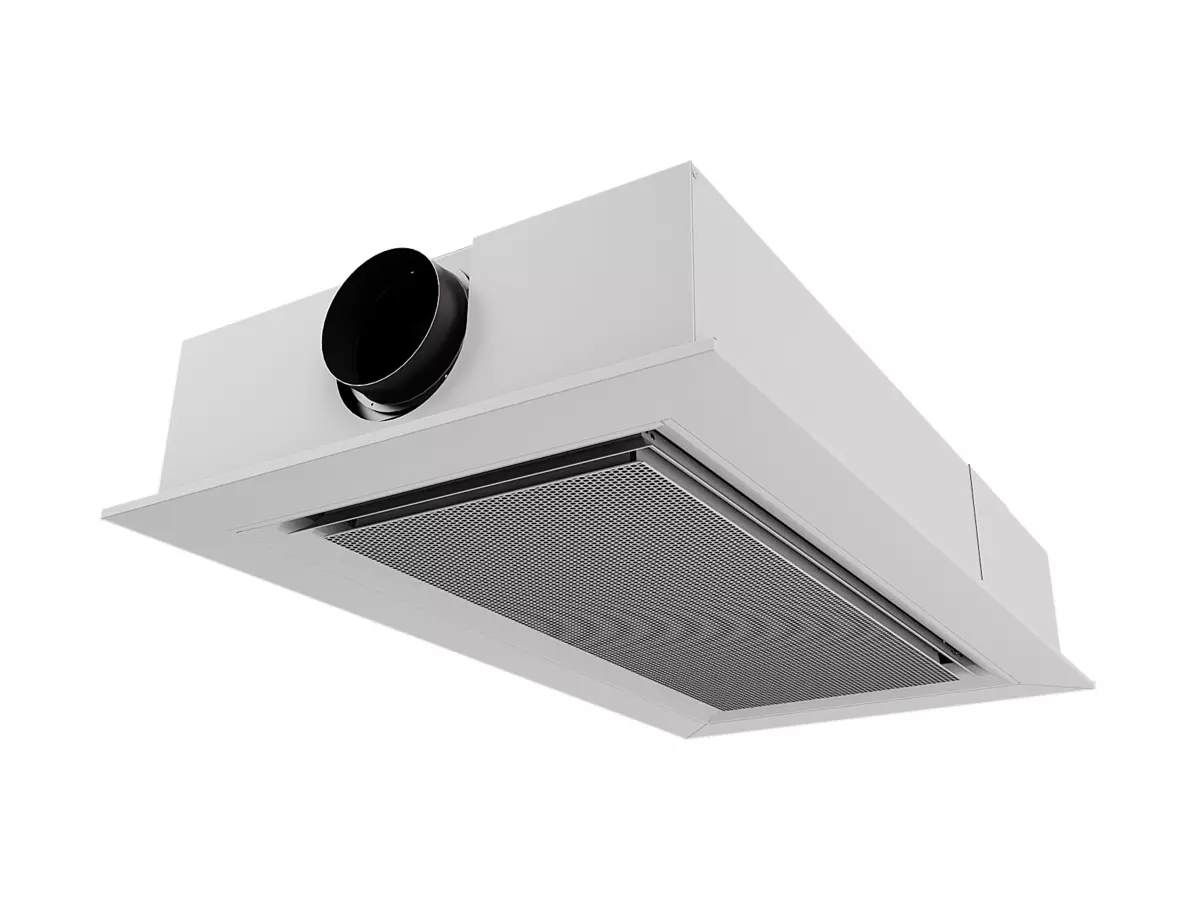

For suspended mounting, a design cover and a coanda frame are available, if required.

Connecting water

The water pipes are always placed on the product’s short side, regardless of the air connection side of the product. Connect the water pipes using push-on couplings or compression ring couplings when the product is ordered without valves. Note that compression ring couplings require support sleeves inside the pipes. Do not use solder couplings to connect the water pipes. High temperatures can damage the unit’s existing soldered joints.

Flexible connecting hoses for water are available for flat-end pipes and valves, and can be ordered separately.

To connect the air

PARASOL Zenith comes with an open air connection on the selected side 1, 2, 3 or 4. On delivery the sleeve faces inwards. During installation the sleeve is turned outwards and is secured with the enclosed screws to then be connected to the primary air duct.

If you subsequently want to change the air connection side than that ordered, you can change the positions of the cover and connection sleeve as set out below. Possibility to change the connection side

• From side 1 to side 2 or 4. (Does not apply to length 600)
• From side 2 to side 3 or 4.
• From side 3 to side 2 or 4. (Does not apply to length 600)
• From side 4 to side 2 or 3.

Commissioning

K-factor setting

You can easily set the required k-factor with the help of the knob located on the short side.

Maintenance

Swegon’s comfort modules do not require any maintenance other than cleaning.
