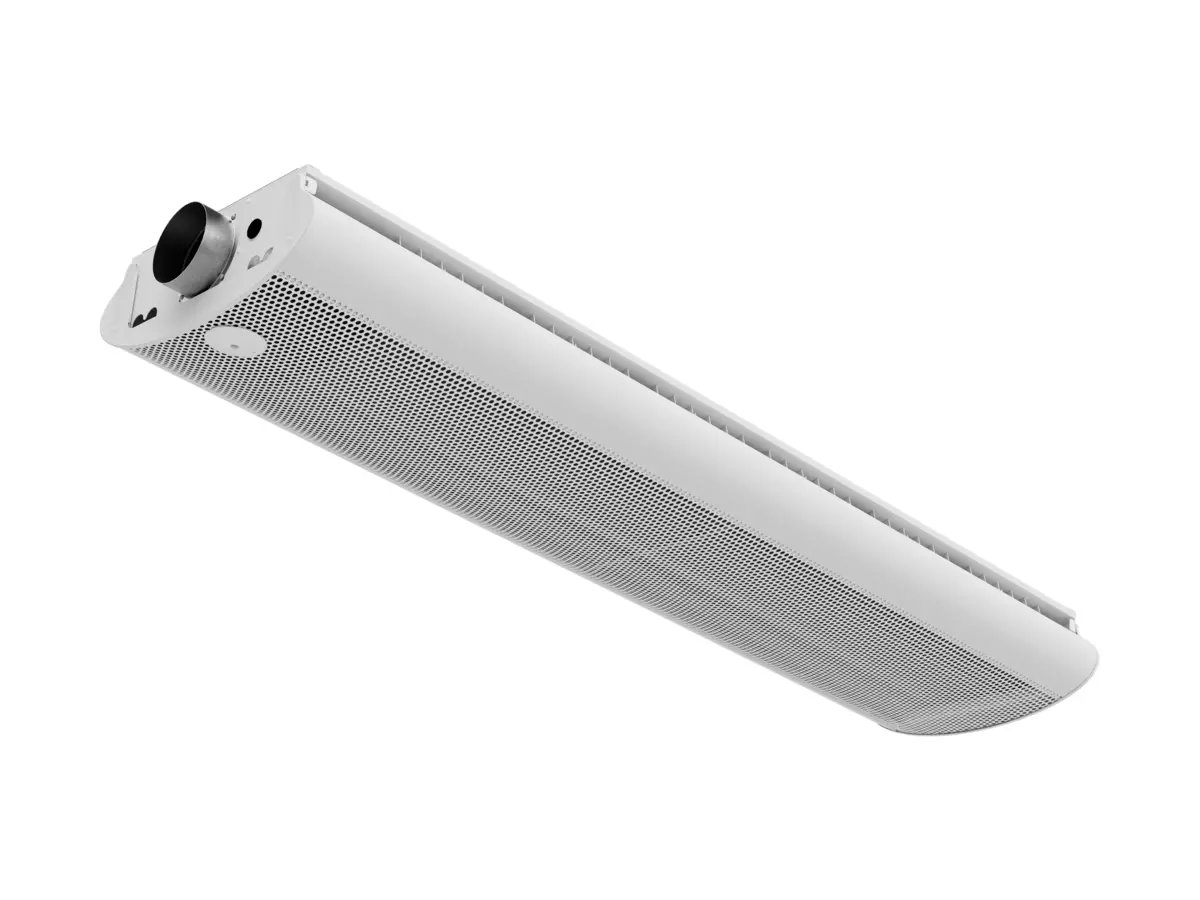

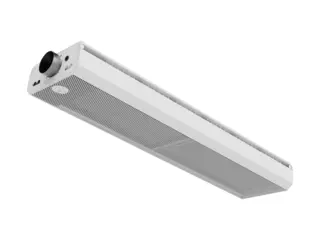

WISE Adriatic

Climate beam for Swegon’s WISE System for demand-controlled ventilation

Climate beam for demand-controlled indoor climate, integrated in Swegon’s control platform WISE
Designed for suspended installation from hangers or mounting directly against the ceiling
Complete product with integrated damper for variable air flow control 0-100%
Energy-efficient operation since the room is ventilated, heated and cooled exactly as called for by the load, neither more or less
Climate beam for cooling, heating and ventilation
Highest possible comfort with provision for individual control on a product or room level
Simple installation and connection to the WISE system
Available with water and air connections on different short sides
Draught-free indoor climate, 2-way air distribution and Swegon’s ADC (Anti Draught Control) provide maximum comfort and flexibility, both today and for future needs
Large working range in one and the same product simplifies planning
Standard colour White RAL 9003
- 5 alternative standard colours
- Other colours upon request

Calculate with your requirements

Product Description

Learn more about WISE.

Design

Material and Surface Treatment

The casing is made of pre-painted sheet metal. The design plate on the Prisma is pre-painted sheet metal, and for the Ellips it is aluminium and sheet metal. The coil is made of copper and aluminium. The connection casing is made of pre-painted sheet metal.

Standard colour:

RAL 9003 White (Signal white), gloss ratio 30 ± 6%

Alternative standard colours:

RAL 7037 Grey (Dusty gray), gloss ratio 30-40%)
RAL 9010 White (Pure white), gloss ratio 30-40%)
RAL 9005 Black (Jet black), gloss ratio 30-40%)
RAL 9006 Silver (White aluminium), gloss ratio 70-80%)
RAL 9007 Grey (Grey aluminium), gloss ratio 70-80%)
Other colours available on request

Installation Information

Variant		Supply air			Performance
Size	Air connection:	Pa*	l/s	m³/h	Total cooling capacity (W)**	Sound level (dB(A))
1.2	125	50	14	50.4	518	<20
1.2	125	50	21	75.6	596	24
1.8	125	50	10	36	539	<20
1.8	125	50	20	72	796	<20
1.8	125	50	31	111.6	934	25
2.4	125	50	14	50.4	788	<20
2.4	125	50	30	108	1101	21
2.4	125	50	44	158.4	1236	28
3	125	50	17	61.2	946	<20
3	125	50	34	122.4	1298	20
3	125	50	52	187.2	1467	30
*Total pressure duct (Pa)
**Air: ΔTair=7K, Water: ΔTmk=8.5K, water flow=0.05 l/s for 1.2 m and 1.8 m, water flow=0.1 l/s for 2.4 m and 3.0 m
***Including -4dB room attenuation

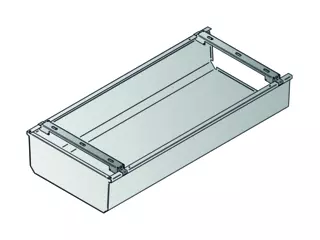

ADRIATIC KA

Connection casing, connection to wall

ADRIATIC KA-G

Connection casing, connection to ceiling

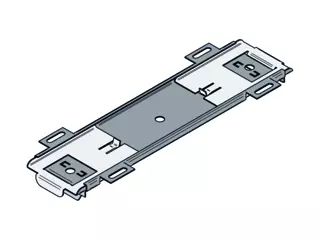

ADRIATIC T MD 4S

Assembly piece

Filter

Include Accessory documents

Document	Article	Document type	Date
Declaration of conformity (CE) (pdf 148.92kB)	WISE Adriatic	Quality	29/04/2023
Building product declaration (pdf 155.74kB)	WISE Adriatic (Prisma)	Quality	02/11/2023
Building product declaration (pdf 155.75kB)	WISE Adriatic (Ellips)	Quality	02/11/2023
Instructions for Use (pdf 6.09MB)	WISE Adriatic	IOM Manual	25/01/2024
Climate beam for Swegon’s WISE System for demand-controlled ventilation (pdf 6.75MB)	WISE Adriatic	Technical catalogue	25/01/2024
