CADENZA

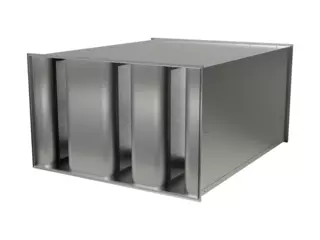

A rectangular sound attenuator with connection to the outer casing, designed to meet today’s high demands on sound attenuation and pressure drop.

• The CADENZA is made as standard of galvanized sheet steel to Corrosivity class C3 (VVS-AMA 2019 Standard).
• The ISOVER Cleantec^® PLUS sound attenuating material has been granted type approval. (Type approval no. 2706/92 with regard to cleaning, cleanability, fibre entrainment, resistance to ageing emissions, etc.
• The standard CADENZA is supplied with slip clamp connections.

The slip-clamp connections on this product are intended for use as connection pieces for ducts only. The product should be suspended with a support beam under its entire width

Example of specification text to VVS AMA

Swegon’s type CADENZA rectangular sound attenuators, with the following attributes:

• Aerodynamically designed acoustic baffles for low pressure drop.
• Type-approved, insulation material, ISOVER Cleantec^® PLUS
• Sound attenuation in dB (to be specified in clear text for the various frequency bands).
• Pressure drop in Pa (to be specified in clear text).
