ESENSA RX TOP

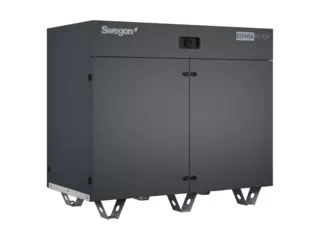

Air handling unit with rotary heat exchanger and top duct connections, with controls.
- Max. air flow 3.350 m³/h (Ecodesign)
- Rotary heat exchanger
- Integrated heating available as an accessory - electrical/water (not factory installed)
- External heaters/coolers as an accessory (water/DX)
- Placement indoors
- Top connections
- With controls and HMI
- Certified by Eurovent
Self-supporting unit with optimised design to facilitate installation and transportation within the building, equipped with pleated filters.
| Dimensions | Air flow | |||||||
| Width mm | Height mm | Length mm | Weigth kg | Min air flow m³/s (Ecodesign) | Max air flow m³/s (Ecodesign) | Min air flow m³/h (Ecodesign) | Max air flow m³/h (Ecodesign) | |
| ESENSA RX TOP 04 | 1285 | 1290 | 72 | 190 | 0.03 | 0.18 | 100 | 660 |
| ESENSA RX TOP05 | 1585 | 1290 | 725 | 225 | 0.06 | 0.33 | 200 | 1200 |
| ESENSA RX TOP 12 | 1685 | 1490 | 925 | 320 | 0.08 | 0.61 | 300 | 2200 |
| ESENSA RX TOP 16 | 1685 | 1590 | 1145 | 365 | 0.11 | 0.9 | 400 | 3250 |
