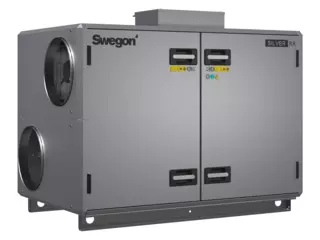

SILVER RX
Air handling unit with rotary heat exchanger and top, side or L connections, without controls.
- Max. air flow 39.180 m³/h (Ecodesign)
- Rotary heat exchanger
- Cooling/heating available as an accessory (not integrated)
- Placement indoors/outdoors
- Top, side or L connections
- Without controls
- Certified by Eurovent
Thanks to a patented design with a turbulent flow in the air passages, RECOnomic attains a uniquely high degree of energy efficiency.
Swegon’s rotary heat exchanger is also available in epoxy treated and sorption treated versions (RECOsorptic). The sorption version increases the energy efficiency further by dehumidifying or recovering moisture depending on the conditions and needs.
| Dimensions | Air flow | |||||||
| Width mm | Height mm | Length mm | Weigth kg | Min air flow m³/s (Ecodesign) | Max air flow m³/s (Ecodesign) | Min air flow m³/h (Ecodesign) | Max air flow m³/h (Ecodesign) | |
| SILVER RX 04 | 825 | 1020 | 1499/1799 | 234-335 | 0.08 | 0.5 | 290 | 1620 |
| SILVER RX 05 | 825 | 1020 | 1499/1799 | 234-335 | 0.08 | 0.5 | 290 | 1960 |
| SILVER RX 07 | 995 | 1185 | 1619/1860 | 281-412 | 0.08 | 0.8 | 290 | 2700 |
| SILVER RX 08 | 995 | 1185 | 1619/1860 | 295-420 | 0.2 | 0.9 | 720 | 3110 |
| SILVER RX 11 | 1199 | 1395 | 1859 | 427-527 | 0.2 | 1.1 | 720 | 3960 |
| SILVER RX 12 | 1199 | 1395 | 1859 | 450-554 | 0.2 | 1.2 | 720 | 4390 |
| SILVER RX 14 | 1400 | 1651 | 2080 | 572-746 | 0.2 | 1.7 | 720 | 5940 |
| SILVER RX 20 | 1400 | 1651 | 2080 | 572-746 | 0.3 | 1.8 | 1080 | 6560 |
| SILVER RX 25 | 1600 | 1911 | 2261 | 744-971 | 0.3 | 2.4 | 1080 | 8600 |
| SILVER RX 30 | 1600 | 1911 | 2261 | 744-971 | 0.5 | 2.5 | 1800 | 8890 |
| SILVER RX 35 | 1990 | 2259 | 2642 | 1096-1405 | 0.5 | 3.6 | 1800 | 12900 |
| SILVER RX 40 | 1990 | 2259 | 2642 | 1096-1405 | 0.8 | 3.9 | 2700 | 14000 |
| SILVER RX 50 | 2318 | 2388 | 2642 | 1298-1752 | 0.8 | 4.9 | 2700 | 17800 |
| SILVER RX 60 | 2318 | 2388 | 2642 | 1298-1752 | 1 | 5.1 | 3600 | 18500 |
| GOLD RX 70 | 2637 | 2740 | 3112 | 2218-2649 | 1 | 7.0 | 3600 | 25200 |
| GOLD RX 70+ | 2970 | 3070 | 3343 | 2614-3335 | 1 | 8.0 | 3600 | 28800 |
| GOLD RX 80 | 2637 | 2740 | 3112 | 2218-2649 | 1.5 | 7.0 | 5400 | 25200 |
| GOLD RX 80+ | 2970 | 3070 | 3343 | 2614-3335 | 1.5 | 8.7 | 5400 | 31320 |
| SILVER RX 100 | 3340 | 3440 | 3322 | 3324-3910 | 1.5 | 10.5 | 5400 | 37950 |
| SILVER RX 120 | 3340 | 3440 | 3322 | 3524-4128 | 2.5 | 10.9 | 9000 | 39180 |
| SILVER RX Top 04 | 825 | 1185 | 1600 | 295-302 | 0.08 | 0.5 | 290 | 1620 |
| SILVER RX Top 05 | 825 | 1185 | 1600 | 295-310 | 0.08 | 0.5 | 290 | 1840 |
| SILVER RX Top 07 | 995 | 1395 | 1720 | 351-376 | 0.08 | 0.7 | 290 | 2540 |
| SILVER RX Top 08 | 995 | 1395 | 1720 | 369-382 | 0.2 | 0.8 | 720 | 2770 |
| SILVER RX Top 11 | 1199 | 1395 | 2219 | 527-549 | 0.2 | 1.1 | 720 | 3950 |
| SILVER RX Top 12 | 1199 | 1395 | 2219 | 550-576 | 0.2 | 1.2 | 720 | 4270 |
| SILVER RX Top 14 | 1400 | 1651 | 2643 | 726-832 | 0.2 | 1.7 | 720 | 5940 |
| SILVER RX Top 20 | 1400 | 1651 | 2643 | 726-832 | 0.3 | 1.8 | 1080 | 6530 |
| SILVER RX Top 25 | 1600 | 1911 | 2643 | 884-1033 | 0.3 | 2.3 | 1080 | 8210 |
| SILVER RX Top 30 | 1600 | 1911 | 2643 | 884-1033 | 0.5 | 2.3 | 1800 | 8160 |
